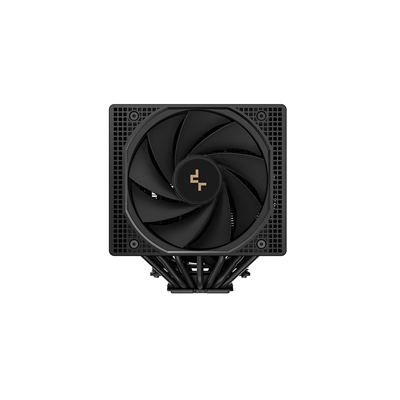

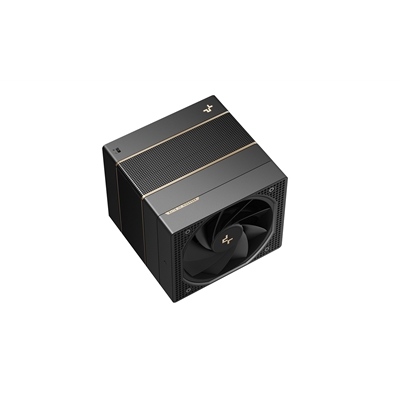

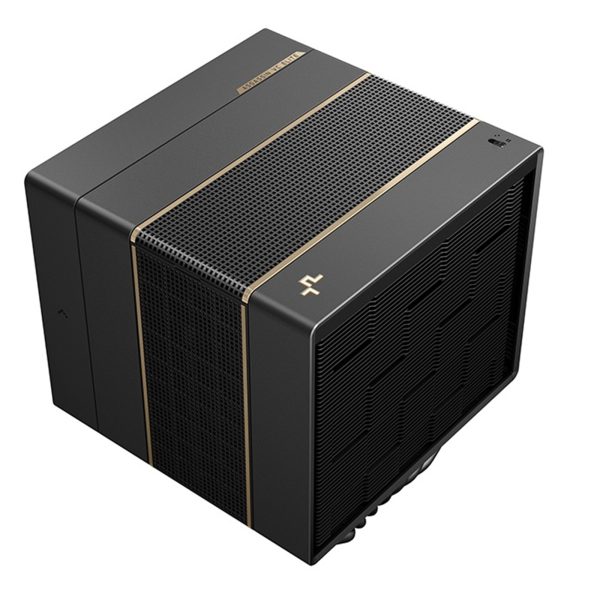

DeepCool ASSASSIN VC ELITE

VAPOR CHAMBER-ENHANCED
The ASSASSIN series expands its premium cooling lineup with the ASSASSIN VC ELITE. Featuring a vapor chamber–enhanced base, heat is rapidly extracted from the CPU and evenly distributed before transferring through seven heatpipes into dual heatsink towers for efficient dissipation. This advanced design significantly improves thermal conductivity and supports up to 300W TDP cooling performance.

IN QUIET OR PERFORMANCE MODE
A convenient hardware switch allows instant selection between Quiet Mode for near-silent operation or Performance Mode for maximum cooling capability during intensive workloads.

ALL CLEAR!
The streamlined outer casing directs airflow efficiently through the fin stacks while maintaining a clean aesthetic. A relocatable 120mm fan provides improved compatibility with high-profile memory modules.

BE COOL, BE CALM
Advanced three-phase, six-slot fan motors combined with premium Fluid Dynamic Bearings deliver excellent cooling efficiency with reduced vibration and low noise output. The ASSASSIN VC ELITE is backed by a 6-year limited warranty.

EXCEPTIONAL BY DESIGN
A vapor chamber base, seven 6mm heatpipes, and dual fin-array heatsink towers work together to provide high-efficiency heat transfer and reliable cooling performance for modern high-power CPUs.

THE FLOW BELOW
The centrally positioned 140mm fan sits deep within the heatsink structure, generating additional downward airflow to help cool surrounding motherboard VRMs.

STREAMLINED INSTALLATION
Installation hardware is designed for user-friendly mounting, and the magnetic top cover allows easier access during installation.

WIDE RANGE OF MODERN CPU SOCKET COMPATIBILITY
Supports a wide range of modern Intel and AMD CPU sockets including LGA1851 and AM5 platforms.

Specifications

Product Dimensions
144 x 147 x 164 mm (L x W x H)

Heatsink Dimensions
140 x 110 x 160 mm (L x W x H)

Net Weight
1772 g

Heatpipes
6 mm x 7 pcs

Fan Dimensions
140 x 140 x 25 mm (L x W x H)
120 x 120 x 25 mm (L x W x H)

Fan Speed (Performance Mode)
500–1800 RPM ±10% / 500–1700 RPM ±10%

Fan Airflow (Performance Mode)
61.25 CFM / 58.06 CFM

Fan Air Pressure (Performance Mode)
3.76 mmAq / 2.1 mmAq

Overall Noise (Performance Mode)
=29.3 dB(A)

Fan Speed (Quiet Mode)
500–1450 RPM ±10% / 500–1350 RPM ±10%

Fan Airflow (Quiet Mode)
48.55 CFM / 46.75 CFM

Fan Air Pressure (Quiet Mode)
2.46 mmAq / 1.35 mmAq

Overall Noise (Quiet Mode)
=22.6 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Fluid Dynamic Bearing

Motor Type
6-Pole Fan Motor

Fan Rated Voltage
12 VDC

Fan Rated Current
0.2 A / 0.2 A

Fan Power Consumption
2.4 W / 2.4 W

Rated Voltage
12 VDC

Power Consumption (Performance Mode)
4.8 W
