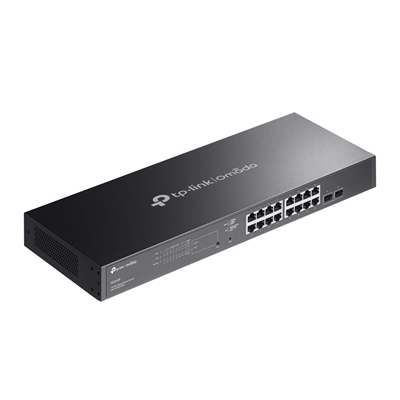

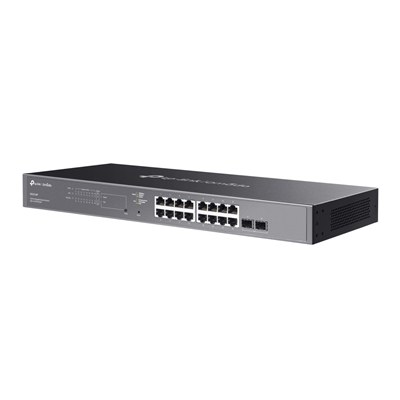

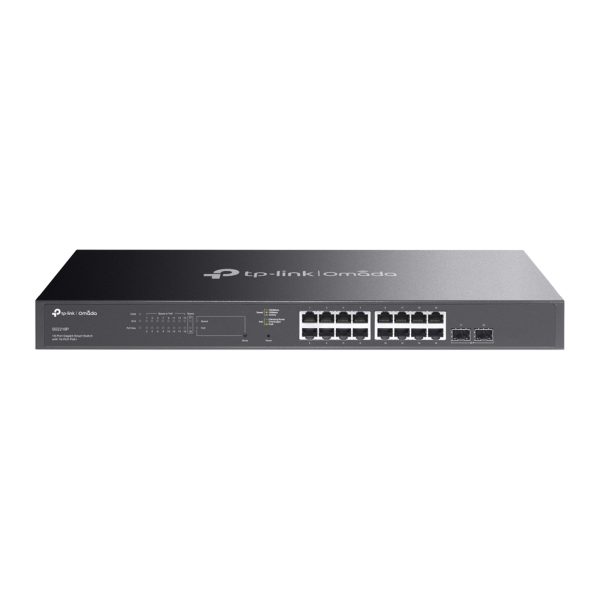

TP-Link Omada 18-Port Gigabit Smart Switch with 16-Port PoE+

Features
16x Gigabit 802.3af/at PoE+ ports and 2x Gigabit SFP Slots
150 W total PoE budget with up to 30 W PoE output per port*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and rackmountable design

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Specifications

HARDWARE FEATURES

Interface
16x 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
2x Gigabit SFP Slots
Fan Quantity -Fanless Design
Physical Security Lockv
Power Supply100-240V AC, 50/60Hz
PoE Ports (RJ45)
Standard: 802.3at/af compliant
PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port)
PoE Power Budget: 150 W*
Dimensions ( W x D x H )17.3×7.1×1.7 in (440x180x44 mm)
MountingRack Mountable

PERFORMANCE

Switching Capacity36 Gbps
Packet Forwarding Rate26.78 Mpps
MAC Address Table8K
Packet Buffer Memory4.1 Mbit
Jumbo Frame9 KB

SOFTWARE FEATURES

Quality of Service
802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
– SP (Strict Priority)
– WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
– Port/Flow based Rating Limit
Smoother Performance
Storm Control
– Multiple Control Modes(kbps/ratio)
– Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features
32 IP Interfaces: Support IPv4/IPv6 Interface
Static Routing: 32 IPv4/IPv6 Static Routes
DHCP Server
DHCP Relay
– DHCP Interface Relay
– DHCP VLAN Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED

L2 Multicast
511 IPv4, IPv6 shared multicast groups
IGMP Snooping
Multicast VLAN Registration (MVR)
Multicast Filtering
Limited IP Multicast (256 profiles and 16 entries per profile)

Advanced Features
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule

VLAN
VLAN Group
– Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN: 12 Entries
Protocol VLAN
GVRP
Voice VLAN

Access Control List
Support up to 230 entries
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation: Permit/Deny
Policy Action
– Mirroring
– Redirect
– Rate Limit
– QoS Remark
ACL Rules Binding
– Port Binding
– VLAN Binding

Security
IP-MAC-Port Binding
AAA
802.1X
– Port-based authentication
– MAC (Host) based authentication
– Authentication Method includes PAP/EAP-MD5
– MAB
– Guest VLAN
– Support Radius authentication and accountability
IP/IPv6-MAC Binding
– 512 Binding Entries
– DHCP Snooping
– DHCPv6 Snooping
– ARP Inspection
– ND Detection
IP Source Guard
– 253 Entries
– Source IP+Source MAC
IPv6 Source Guard
– 183 Entries
– Source IPv6 Address+Source MAC
DoS Defend
Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control

IPv6
IPv6 Static Routing and ACL
IPv6 Dual IPv4/IPv6
IPv6 Interface
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP

MIBs
MIB II (RFC1213)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIBs
RMON MIB(RFC1757, rmon 1,2,3,9)

Management Features

Omada App
Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller

Cloud Access
Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller

Management Features
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log

OTHERS

Certification
CE, FCC, RoHS

Package Content
SG2218P
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet

System Requirements
Microsoft Windows XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.

Environment
Operating Temperature: 0–45 C (32–113 F);
Storage Temperature: -40–70 C (-40–158 F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
